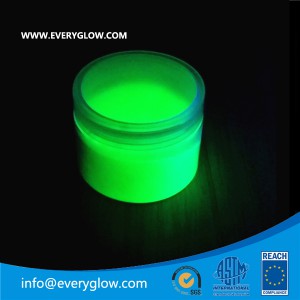

Everyglow WLBG Waterproof photoluminescent pigment yellow-green

Description

Everyglow WLBG Waterproof luminescent pigment is a Rare earth strontium aluminate base glowing material, process a special waterproof material coating of the crystals surface, to make it with performance water resistant. it available glow more than 24 hours after absorb the visible light for 5-30mins,

and this emit & absorb light process is repeatedly,no power request.

Products Properties:

Free of  radioactive elements , non-toxic, harmless, Eco-friendly material.

Longer afterglow time and super higher luminance than traditional ZnC sulphur luminecent material.

Excellent heat resistance . Good performace for temperature as high as 800℃

Perfect light resistance. under 300W high pressure mercury lamp for 1000hr even not reduce them luminance.

High chemicals stability. Everyglow PL pigment not reaction with any organic and inorganic agents except mercury.

Long life time.  as long as 30years life time.

Series	WLBG	D50= um
Chemical composition	SrAlxOy:Eu2+,Dy3+	Appearance	Yellowish
Average Dimater	10~70μm	Glow color	Yellow-green
Specific gravity	3.6	Exciting wavelength(nm)	200~450nm
MOH’s Hardness	6.2~6.5	Emission wavelength	520Nm
Hydrous content	<0.05%	Afterglow luminance mcd/m2	350mcd/m2 at        10mins
PH (in Water)	8~9.5		40mcd/m2 at 60mins

Products code	Particle size	Afterglow luminance mcd/m2		Glow color
	(um)	10mins	60mins
WLBG-HA	50~70um	680	110	Yellow-green
WLBG-HB	35~50um	530	77
WLBG-HC	15~35um	490	65
WLBG-MA	50~70um	500	60
WLBG-MB	35~50um	380	45
WLBG-MC	15~35um	310	38
WLBG-LA	50~70um	335	43
WLBG-LB	35~50um	265	35
WLBG-LC	15~35um	230	30

Note: Test standard: DIN67510 Part 1

1) Excited by light source D65 1000Lx for 10mins;

2)The afterglow time indicates the time during which the pigment decline to 0.32 mcd/m2

3) The error about ± 10% is allowed in above data.

4) Color: G-yellow-green , B-aqua , P-purple , SB-sky-blue.

Package:

1kg/bag, 25kg/drum, 500kg/pallet.

Application:

These pigment is mainly applicable as an additive in the paints, coating, ink, plastics,glass,ceramic, fibre and other transparent medium to realize it self-luminescent function. (Suggest use for waterbase paint,ink,coating,plastic etc)
