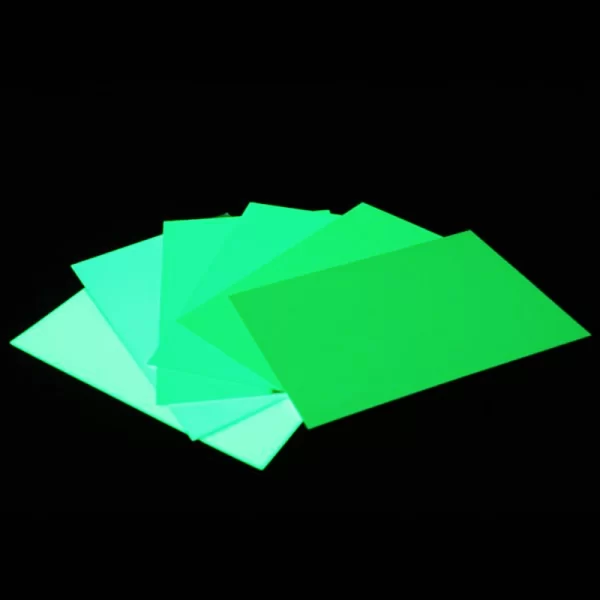

EVERYGLOW® Rigid Photoluminescent Sheet (High-Intensity Substrate)
Our Rigid Photoluminescent Sheet is a professional-grade, non-electric safety substrate engineered for extreme durability and high-performance light emission. Available in both Rigid PVC and Aluminum-backed configurations, these sheets serve as the structural foundation for fail-safe emergency egress systems, fire safety signage, and maritime identification markers.
Unlike flexible films, the rigid construction provides superior impact resistance and structural integrity, making it the preferred choice for high-traffic industrial environments and extreme weather conditions.
Photoluminescent sheet Features & Performance
- Advanced Strontium Aluminate Technology: Infused with high-density crystals that provide 10x the brightness and longevity of traditional zinc-sulfide materials.
- Fail-Safe Illumination: Requires zero electricity or battery backup. Recharges indefinitely from any ambient light source (natural or artificial).
- Compliance Ready: Engineered to meet and exceed global safety standards:
- ДИН 67510: Performance Class C, D, and E available.
- ИМО / SOLAS: Maritime-certified for low-location lighting (LLL).
- ASTM E2072: Standard specification for photoluminescent safety markings.
- Structural Integrity: Available in fire-retardant PVC or corrosion-resistant Aluminum. Both options are impact-resistant and designed for long-term installation (15+ years indoor service life).
- Print Optimization: The surface is specially treated for high-adhesion silk-screen printing and UV-digital printing, allowing for crisp, high-contrast safety icons and text.
Rigid Photoluminescent sheet Technical Specifications
| Property | Photoluminescent Rigid PVC Sheet | Photoluminescent Aluminum Rigid Sheet |
|---|---|---|
| Base Material | Flame-Retardant PVC | Anodized/Coated Aluminum |
| Толщина | 1.0мм, 1.2мм, 1.5мм, 2.0мм | 1.3мм, 1.5мм ,2.0мм |
| Luminance (10 мин) | >70 МКД/м2 | Up to 600mcd/m2 (Super Grade) |
| Afterglow Duration | 8 Hours | 12+ Hours |
| Standard Dimensions | 500 x 600mm,600 x 1000mm,1000 x 1200mm | 1200mm x 1000mm |
| Fire Rating | UL 94 V-0 or Class B1 | Non-combustible base |
| Chemical Resistance | High (Oil, Grease, Saltwater) | Excellent (Marine Grade) |
Primary Applications
1. Fire Safety & Emergency Egress
The primary substrate for manufacturing high-quality “EXIT” signs, fire extinguisher IDs, and directional arrows. The rigid nature allows for mounting on uneven surfaces or standoff brackets.
2. Maritime & Offshore (IMO/SOLAS)
Crucial for shipboard safety. These sheets are resistant to saltwater corrosion and humidity, making them ideal for marking escape hatches, corridors, and life-raft stations on commercial vessels and oil rigs.
3. Industrial Infrastructure
Used in power plants, tunnels, and warehouses to mark low-clearance beams, hazard zones, and valve locations that must remain visible during a total power failure or smoke-filled event.
4. High-End Commercial Signage
Utilized by architects for decorative but functional lighting in theaters, parking garages, and modern office buildings where aesthetics must meet safety codes.
Fabrication & Installation
- Cutting: Can be easily processed using industrial shears, CNC routers, or laser cutting (Aluminum only).
- Печать: Optimized for solvent, eco-solvent, and UV-curable inks. No specialized primers are usually required for high-quality rigid sheets.
- Mounting: Can be installed using mechanical fasteners (screws/rivets) or high-bond industrial double-sided tapes. The rigid back prevents the “telegraphing” of surface imperfections often seen with thin films.
Safety & Handling
- Eco-Friendly: Не токсичен, Нерадиоактивные, and lead-free.
- Maintenance: Maintenance-free beyond occasional cleaning. Use a damp cloth to remove dust to ensure maximum light absorption.
- Storage: Store flat in a dry, ventilated area to prevent warping (for PVC) or surface scratching.
Photoluminescent pvc rigid sheet is choose Everyglow LBG series photoluminescent pigment combine with Acrylic resin and PVC base rigid sheet, Она доступна свечение 6-10hours после поглощения видимого света для 5-30 минут,
и этой перегруженной & поглощают свет это процесс неоднократно,Нет питания запрос.
Свойства продуктов:
Бесплатные радиоактивных элементов , не токсичен, безвредные, Экологически чистый материал.
Длиннее время послесвечения и супер выше яркости.
Отличная печать, Эко Сольвентные чернила,UV чернила, Шелкографическая тушь.
Очень хорошо, погода устойчивостью для наружного использования.
| Название продукции | Class B | photoluminescent boards | |
| Материал | ПВХ | Внешний вид | Желтоватый |
| Толщина | 1.0-1.3мм | Цвет свечения | Желто зеленый |
| Ширина | 1.2Макс м | Время жизни в дверь | 10год |
| Длина | 1.0m | Время жизни Открытый | 3-7лет |
| Самоклеящиеся | Да | Послесвечение яркости МКД/м2 | > 50МКД/м2 на 10 минут |
| Печатная краска | UV чернила,Шелкографическая тушь | >7МКД/м2 в 60mins | |
1) В восторге от источника света D65 1000Lx за 10 минут;Примечание: Стандартный тест: DIN67510 часть 1
2)Время послесвечения указывает время, в течение которых пигмент отказаться 0.32 МКД/м2
3) Ошибка о ± 10% допускается в выше данных.
Пакет:
1.0м x 1,2 м, 60x 50 см ,60см x 100 см.
заявка:
Photoluminescent PVC Rigid sheet is mainly apply as Safety photoluminescent sign, Реклама,лейбл,план эвакуации, wayfinding системы и т.д..
