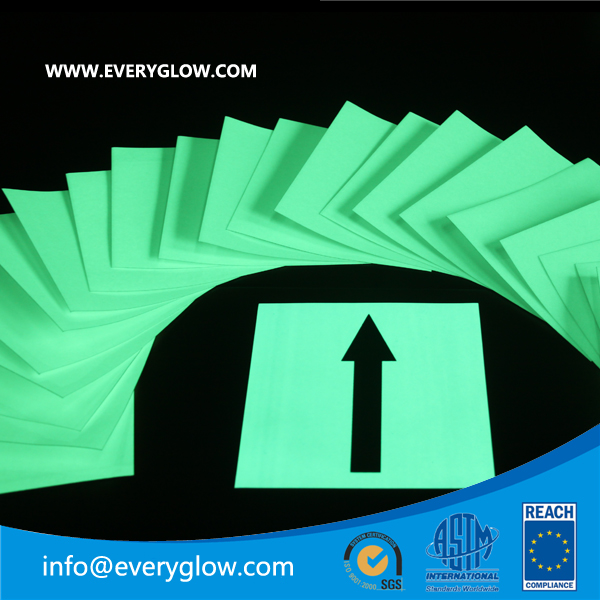

EVERYGLOW® Premium Class D photoluminescent Rigid Sheet – High Performance Strontium Aluminate Safety Grade (1.0мм – 2.0mm Thickness)
Ensure unfailing visibility in the most demanding environments with our high-performance photoluminescent rigid sheet. Engineered for structural integrity and maximum luminance, these heavy-duty panels are designed to provide clear, reliable guidance during power failures or emergency evacuations.
Unlike flexible vinyl films, these rigid boards provide a flat, professional mounting surface that resists peeling, warping, and impact, making them the gold standard for permanent safety installations.
Procurement Notice: Formulated explicitly for environments requiring strict compliance with ISO 17398, DIN67510-4, and IMO/SOLAS maritime regulations for low-location lighting (LLL) and emergency escape sign structures.
Photoluminescent rigid sheet Key Features
- Exceptional Glow Performance: Utilizing advanced strontium aluminate pigments, these sheets charge quickly under any light source and provide a powerful, high-intensity glow for over 10 Часы.
- Ultra-Durable Substrate: Constructed from high-impact materials that withstand harsh industrial conditions. These sheets are resistant to moisture, chemicals, and abrasion.
- Fire & Heat Resistant: Formulated to meet rigorous fire safety standards, making them suitable for use in high-occupancy buildings, tunnels, and offshore platforms.
- Zero Maintenance: Requires no batteries, bulbs, or electrical wiring. Install and let the material work passively for a 10-year service life.
- Non-Toxic & Eco-Friendly: Completely free of radioactive materials and phosphorus. Safe for use in food processing areas, schools, and healthcare facilities.
Приложения

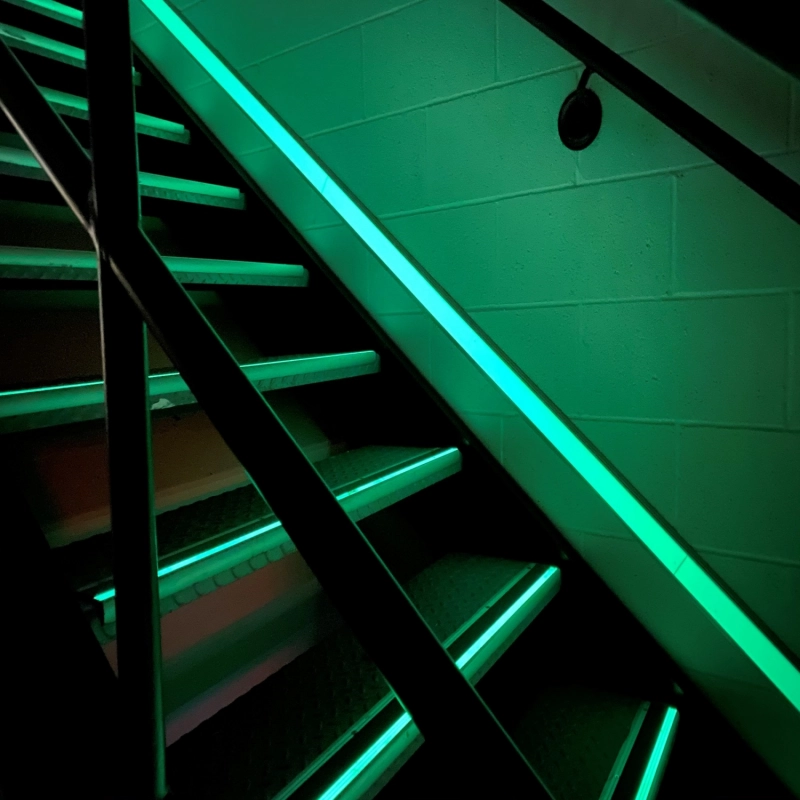

- Emergency Egress Systems: Permanent wall-mounted exit signs, direction indicators, and floor-level path markers.
- Industrial Wayfinding: High-visibility markers for fire equipment, valves, and emergency shut-offs in warehouses or factories.
- Public Infrastructure: Reliable guidance signage for subways, railway stations, and parking garages.
- Marine & Offshore: Durable IMO-compliant signage for ship decks, engine rooms, and oil rigs.
Технические характеристики
- Материал: Rigid Photoluminescent Composite / ПВХ / Polyester
- Luminance Class: Available in Class B, C, D, and High-Performance E
- Installation: Can be easily drilled for screw-mounting or applied with high-bond adhesive foam
- Surface Finish: Matte or Gloss (designed to reduce glare in bright light)
- Standard Sizes: 500 x 600mm, 600 x 1000mm, 1000 x 1200mm, Толщина: 1.3- 2.0мм. Customizable dimensions and thicknesses to fit specific safety regulations
Technical Performance Specifications
The “Класс D” classification dictates strict minimum brightness levels measured in millicandelas per square meter (МКД/м2) after excitation ceases.
| Measurement Interval | Class D Minimum Requirement | Standard Class B (Reference) |
| 10 Minutes | 260МКД/м2 | 50 МКД/м2 |
| 60 Minutes | 35МКД/м2 | 7 МКД/м2 |
| Decay Time (to 0.32 МКД/м2) | Up to 3,000+ минут | ~600 minutes |
Pro Tip: When installing Photoluminescent rigid sheets in high-traffic corridors, use mechanical fasteners (screws or rivets) in addition to adhesive. This ensures the signage remains in place even in extreme heat or high-moisture conditions where adhesives might eventually fail.
Вопросы и ответы:
What are the environmental and safety properties of the EVERYGLOW® photoluminescent sheets?
The sheets are non-toxic, free of radioactive substances, eco-friendly, weather-resistant for outdoor use, and meet flameless safety standards according to IEC 60092-101, making them safe for use in various sensitive environments.
How does the luminescence performance of the D class compare with standard classes?
Class D requires a minimum luminance of 260mcd/m² after 10 minutes and 35mcd/m² after 60 минут, with decay up to over 3,000 минут, significantly outperforming standard Class B, which has lower luminance and shorter afterglow duration.
What are the technical specifications of the photoluminescent rigid sheets?
They are made from rigid composite materials such as PVC or polyester, available in luminance classes B, C, D, and high-performance E, and can be installed easily with screw-mounting or adhesives. The sheets come in matte or gloss finishes and customizable sizes, typically 500x600mm, 600x1000mm, or 1000x1200mm with a thickness of 1.3 to 2.0mm.
In which applications can the photoluminescent rigid sheets be used?
These sheets are suitable for emergency egress systems such as wall-mounted exit signs and floor markers, industrial wayfinding in warehouses and factories, reliable signage in public infrastructure like subways and parking garages, and marine or offshore environments on ships and oil rigs.
What are the key features of the EVERYGLOW® Photoluminescent Rigid Sheet?
The EVERYGLOW® Photoluminescent Rigid Sheet boasts exceptional glow performance with high-intensity luminance for over 10 Часы, is constructed from ultra-durable, impact-resistant materials, and is fire and heat-resistant, requiring no maintenance and being non-toxic and eco-friendly.
EVERYGLOW® photoluminescent PVC rigid sheet is chosen. Everyglow LBG series photoluminescent pigment is combined with PVC resin and PVC base rigid sheet; it is available with a glow for 24 hours after absorbing the visible light for 5-30 минут.
And this emission & absorption light process is repeated, with no power request.
Свойства продуктов:
Free of radioactive elements, не токсичен, безвредные, and eco-friendly material.
Longer afterglow time and super-high luminance.
Отличная печать, Эко Сольвентные чернила, UV ink, and silk-screen ink.
Good weather-resistant for outdoor use.
Производительность беспламенного согласно IEC 60092-101 – Элемент 2.28.2
| Название продукции | Class D According to ISO 17398 / ДИН 67510 Часть 1 | Photoluminescent PVC board | |
| Материал | ПВХ | Внешний вид | Желтоватый |
| Толщина | 1.3мм | Цвет свечения | Желто зеленый |
| Ширина | 1.2Макс м | Lifetime indoors | 10год |
| Длина | 1.0m | Lifetime outdoor | 5-7лет |
| Поверхность | Матовый | Послесвечение яркости МКД/м2 | ≥260mcd/m2 at 10mins |
| Печатная краска | UV ink,Шелкографическая тушь | ≥35/m2 at 60mins | |
Примечание: Стандартный тест: DIN67510 часть 1
1) Excited by light source D65 1000Lx for 10 минут;
2)The afterglow time indicates the time during which the pigment declines to 0.32 МКД/м2
3) The error of ± 10% is allowed in the above data.
Пакет:
1.0м x 1,2 м, 60x 50 см ,60см x 100 см.
заявка:
These pigments are mainly applied as Safety UL924 photoluminescent sign, эвакуация в знак, план эвакуации, Low location light wayfinding system, и т.д..
