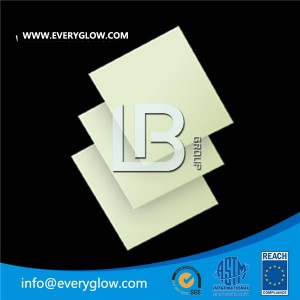

Everyglow photoluminescent sheet is choose Everyglow LBG series photoluminescent pigment combine with acrylic resin , it available glow 6-10hours after absorb the visible light for 5-30mins,
and this emit & absorb light process is repeatedly,no power request.
Products Properties:
Free of radioactive elements , non-toxic, harmless, Eco-friendly material.
Longer afterglow time and super higher luminance.
Excellent printing by eco-solvent ink,uv ink, silk-screen ink.
Good weather resistant for outdoor use.
Performance of flameless according to IEC 60092-101 – Item 2.28.2
| Products name | Class D | photoluminescent Acrylic sheet | |
| Material | Acrylic | Appearance | Yellowish |
| Thickness | 3.0mm | Glow color | Yellow-green |
| Width | 1.35m max | Life time in door | 10year |
| length | 1.0m-2.44m | Life time outdoor | 3-7years |
| Surface | Glossy | Afterglow luminance mcd/m2 | 235mcd/m2 at 10mins |
| Printing ink | uv ink,silk-screen ink | 35/m2 at 60mins | |
Note: Test standard: DIN67510 Part 1
1) Excited by light source D65 1000Lx for 10mins;
2)The afterglow time indicates the time during which the pigment decline to 0.32 mcd/m2
3) The error about ± 10% is allowed in above data.
Package:
1.0m x 1.2m, 60cm x 50cm ,60cm x 100cm.
Application:
These pigment is mainly apply as Safety UL924 photoluminescent sign, egress sign,evacuation plan,Low location light wayfinding system etc.
