Descrizione del prodotto: Photoluminescent Lamination Film
Overview
Everyglow Photoluminescent Lamination Film is a specialized, cold-laminating functional film designed to transform standard printed graphics into glow-in-the-dark safety signage. It consists of a high-clarity protective layer embedded with premium strontium aluminate photoluminescent pigments and a high-performance adhesive backing.
This glow in the dark cold lamination film is primarily used to provide “emergency egress marking” capabilities to existing substrates, allowing printed warnings, loghi, and directional arrows to remain visible for 10+ hours during power outages or smoke-filled environments.
Key Features
- Dual Functionality: Acts as both a protective laminate (shielding against UV, abrasion, and moisture) and a high-intensity light source in the dark.
- Superior Afterglow: Engineered with high-density glow crystals that exceed standard photoluminescent requirements (Class C/D performance).
- High Transparency: Maintains the color integrity and legibility of the underlying printed graphics while providing a uniform glow.
- Easy Application: Cold-lamination technology allows for pressure-sensitive application without the need for high-heat equipment.
- Durability: Solvent-resistant and scratch-resistant surface ensures a long service life in high-traffic areas.
Specifiche tecniche
| Property | Typical Value |
|---|---|
| Material Base | ANIMALE DOMESTICO (depending on flexibility requirements) |
| Glow Duration | 8 to 12+ Hours |
| Film Thickness | 150 – 250 Micron |
| Adesivo | Acrylic pressure-sensitive adhesive |
| Charging Time | 5–15 minutes under standard LED or Fluorescent light |
| Service Life | 5–10 years (coperta) |
Common Applications
This photoluminescent lamination film is the industry standard for creating professional-grade safety systems:
- Emergency Egress Markings: Overlaminating floor decals, exit signs, and stair markers.
- Industrial Safety: Marking machinery controls, fire extinguisher cabinets, and hazard zones.
- Public Transport: Luminous route maps, door handle indicators, and emergency instructions in subways and buses.
- Creative/Advertising: Glow-in-the-dark posters, brand logos, and promotional decals for nighttime events.

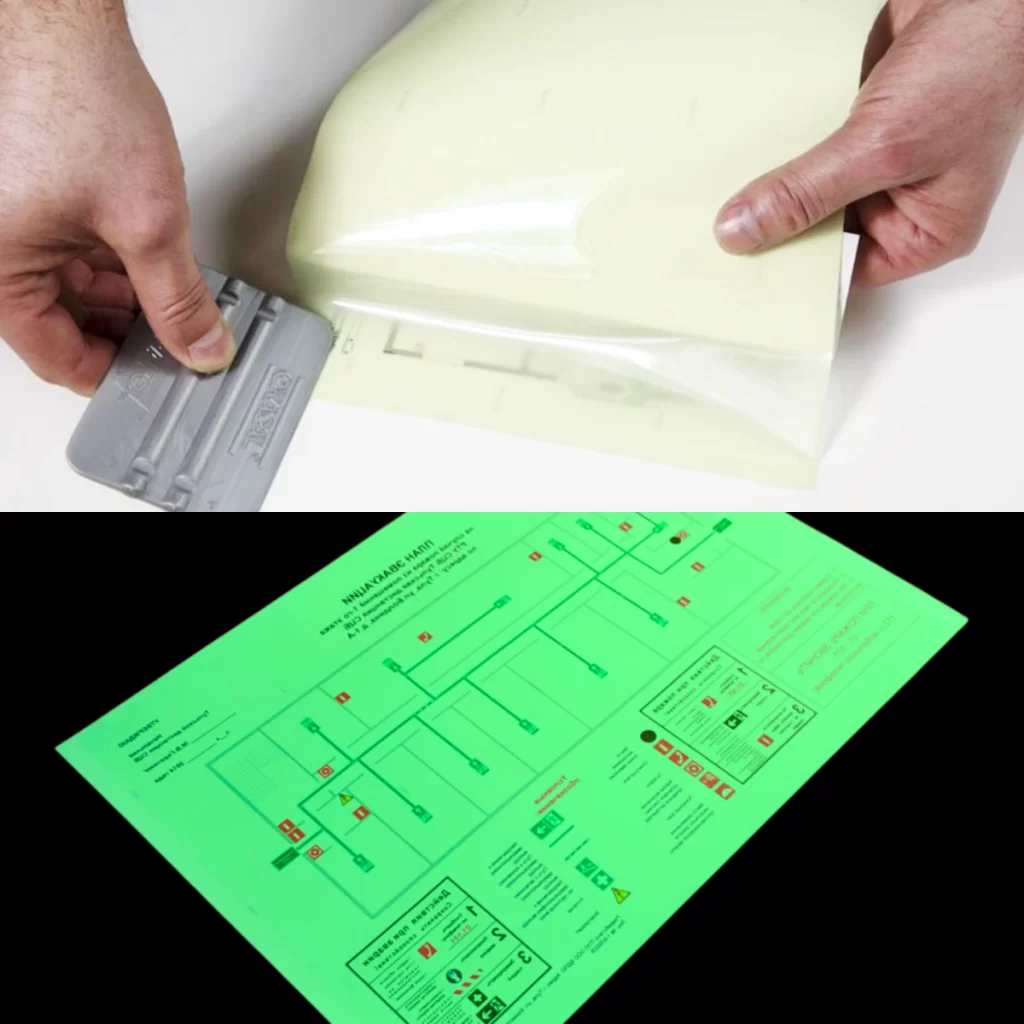

Application Instructions
- Surface Preparation: Ensure the printed substrate is completely dry (especially if using eco-solvent or inkjet inks) and free from dust or oils.
- Laminazione: Use a standard cold laminator or hand-roller. Apply consistent pressure to avoid air bubbles or silvering.
- Cutting: Once laminated, the composite material can be contour-cut using standard plotters or die-cutting equipment.
- Curing: Allow 24 hours for the adhesive to reach full bond strength before exposing the film to heavy cleaning or extreme temperatures.
Safety & Compliance
- DIN 67510-1: Meets international brightness standards for phosphorescent materials.
- Non-Toxic: Free from phosphorus, lead, and radioactive elements.
- Flame Retardant: Available in fire-resistant grades for building code compliance.
- GOST R 12.2.143-2009
- ГОСТ 34428-2018
| Nome di prodotti | PLF-FES1440 | Everyglow photoluminescent laminazione film | |
| Materiale | Polyster | Aspetto | verde pallido |
| Spessore | 0.15-0.2mm | Colore del bagliore | Giallo-verde |
| Larghezza | 61cm 122 cm | Tempo di vita in porta | 10anno |
| lunghezza | 25m / 50m | Tempo di vita all'aperto | 3-5anni |
| Autoadesive | Sì | Afterglow luminanza mcd/m2 | >200MCD/m2 a 10 minuti |
| Stampa | Laminazione | >25MCD/m2 a 60 min | |
Фотолюминесцентная пленкa GOST R 12.2.143-2009 Sistemi di evacuazione fotoluminescente
1) Eccitato dalla sorgente di luce D65 1000Lx per 10 minuti;Nota: Norma di prova: Parte DIN67510 1
2)Il tempo di afterglow indica il tempo durante il quale il pigmento rifiutarsi di 0.32 MCD/m2
3) L'errore circa ± 10% è consentito in precedenza dati.
Pacchetto:
1.22m x 25m / 50m, 61cm x 25m / 50m ,ogni rotoli messi in un cartone.
Applicazione:
Questi pigmenti è pricipalmente si applica come grafica ,lettera, forma speciale,bastone di auto,e wall sticker ecc.
Фотолюминесцентная пленка ФЭС-24
Плотная эластичная светло-желтая матовая пленка предназначена для прямой печати сольвентными и эко-сольвентными чернилами, УФ-печати и шелкографии. Легко нарезается в листы и ленты, приклеивается к ПВХ-основе. Применяется для изготовления планов эвакуации, знаков пожарной безопасности, фотолюминесцентных экранов для огнетушителей, лент линейной разметки фэс. Пленка имеет клеевой слой и полностью готова к использованию.
Самоклеющаяся фотолюминесцентная пленка Фес-24 производится рулонами по 50 метров длиной, шириной – 61 см, площадью не менее 30,5 кв.м. Каждый ролл обернут в стрейч-пленку, по необходимости защищен боковыми клапанами, упакован в картонную коробку.
Продукция не содержит кадмия и изготовлена в соответствии с ТУ 22.21.30-001-13006553-2020, промаркирована и сертифицирована по ГОСТ 12.4.026-2015 с изм. №1 от 01.10.2019 г., ГОСТ 34428-2018 г.
Фотолюминесцентные самоклеящиеся пленки светятся более 30 часов.
Время послесвечения через:
- 10 минут – не менее 200 мкд/м2;
- 60 минут – не меньше 25 мкд/м2.
Ассортимент фотолюминесцентной пленки ФЭС-24 (для печати и ламинации, от 16-30 часов свечения):
- 0,61х25 м;
- 0,61х50 м;
- 0,61 в п.м;
- 1,22х50 м;
- 1,24 в п.м.
Скачать информацию:
- Каталог всей продукции
- Инструкция для готовых макетов
- Тех.задание на изготовление плана эвакуации
- Указания по применению фотолюминесцентной пленки
- Буклет Паритет-РК по всем пленкам
- ГОСТ 34428-2018
