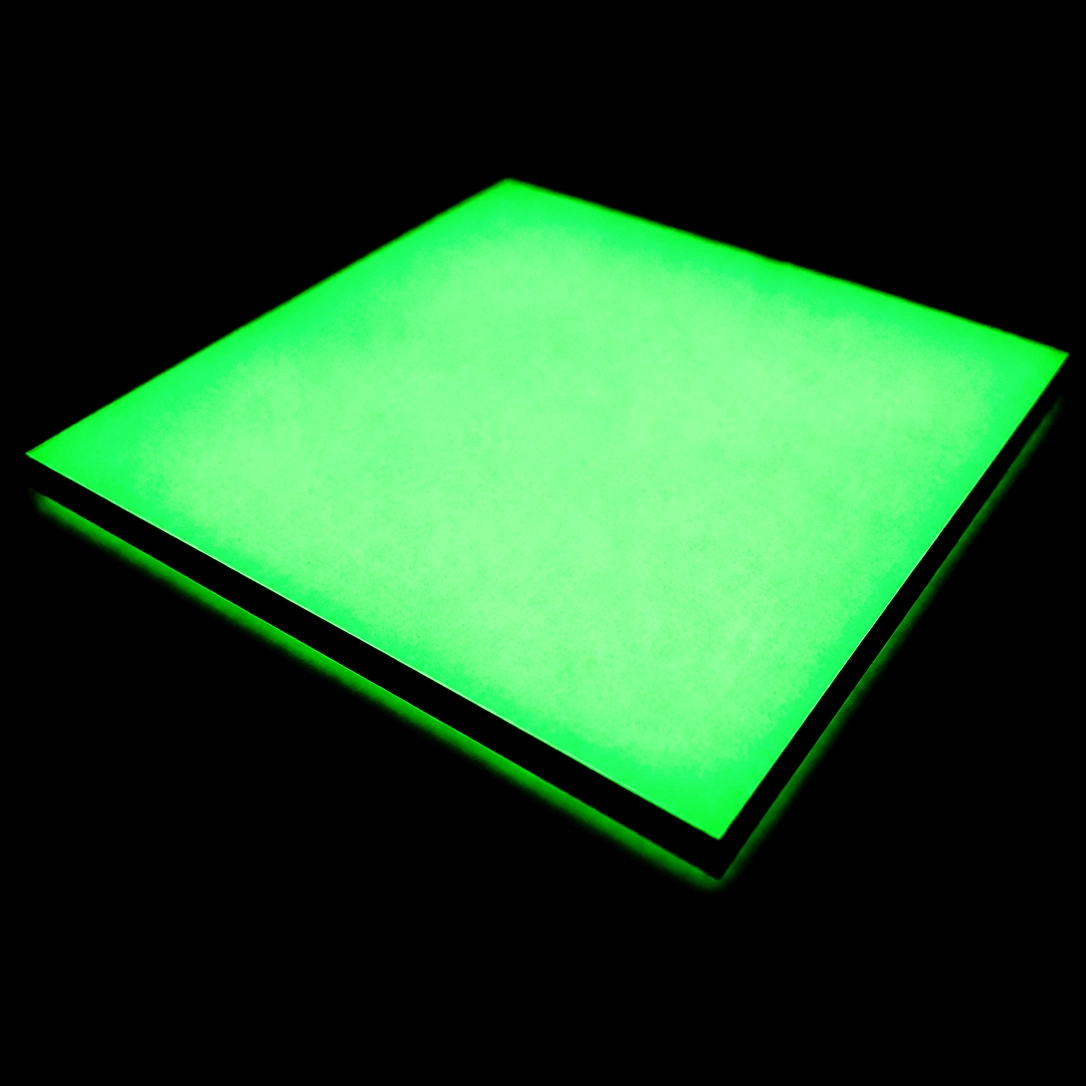

Photoluminescent Aluminium Sheet — Everyglow®

Everyglow® photoluminescent aluminum sheet is a rigid, durable substrate coated with high-performance strontium aluminate photoluminescent material.
It combines the structural strength of aluminium with long-duration afterglow, making it suitable for permanent safety signage, tunnel marking, stair nosings, and architectural wayfinding systems.

After absorbing ambient or UV light for 10–30 minutes, the photoluminescent aluminum sheet emits a bright green or blue-green glow for 8–12 hours — with no external power source required.

SPECIFICATIONS

Substrate: Aluminium (1070 / 3003 series)
Thickness: 0.8 Mm / 1.0 Mm / 1.5 Mm / 2.0 Mm / 3.0 Mm
Standard sheet size: 1000 × 2000 Mm (custom sizes available)
Glow colour: Yellow-green (SrAl₂O₄:Eu,Dy) / Aqua blue available
Surface finish: Matte / gloss optional
Coating: Photoluminescent layer + UV-resistant protective topcoat
Operating temperature: -30°C to +80°C
Certifications: DIN 67510, RoHS compliant, SGS tested

APPLICATIONS

– Tunnel emergency exit and directional signs
– Subway and metro station wayfinding
– Stair nosing and floor marking strips
– Building evacuation route identification
– Marine and offshore facility safety marking
– Architectural feature panels

Custom sizes, pre-cut shapes, and screen-printed safety signs are available on request. Contact us for technical datasheets, samples, and bulk pricing.

Products name	Class E	photoluminescent Aluminum sheet
Materiál	Aluminum	Vzhľad	Yellowish
Thickness	1.0-3.0Mm	Žiarivá farba	Yellow-green
Width	1.0m max	Life time in door	10rok
length	1.0m	Life time outdoor	5-7years
Self-adhesive	yes	Afterglow luminance mcd/m2	450mcd/m2 at 10mins
Printing ink	uv ink,silk-screen ink		55mcd/m2 at 60mins

1) Excited by light source D65 1000Lx for 10mins;Note: Test standard: DIN67510 Part 1

2)The afterglow time indicates the time during which the pigment decline to 0.32 mcd/m2

3) The error about ± 10% is allowed in above data.

Balík:

1.0m x 1.0m, 60cm x 50cm ,60cm x 100cm.

Aplikácia:

These pigment is mainly apply as Safety photoluminescent sign, advertising,label,evacuation plan, wayfinding system etc.
