Smart film

pdlc smart film

Description

Quick Details
Place of Origin:Beijing, China (Mainland)
Brand Name:INOVAFILM
Model Number:Switchable Smart Film
Material:PET
Function:Decorative, Explosion-Proof, Heat Insulation, projector screen
Feature:Self-Adhesive
Type:Glass Films
Surface Treatment:Embossed, Opaque
Thickness:0.38mm
Color off:opaque
color on:tranparency
width:1200mm,1500mm
length:50m
Transmission (parallel light):80%
Working Voltage:48v/65v
haze:<5
operating temperature:-30~70C
Specification
Setting Information
Products name
PDLC Switchable film
Thickness
0.4mm
Width
1500mm
Length
25m /50m
Haze
<5
Transmission (parallel light)

>80% (ON)

<10% (OFF)
View angel
150°
Shelf life
10 years indoor
Product Description

Product Details

Switchable smart film is a liquid crystal ( LC ) produce based on polymer dispersed liquid crystal ( PDLC ) technology and two semiconductor films of indium tin oxide ( ITO ) films used as electrodes. Protective layers of thermoplastic ( PET ) are used to protect the film from scratches . The transparency of the smart film can be adjusted with the help of alternating current. Smart film is made of two types – self-adhesive, which can be glued to ordinary glass, and not a self-adhesive film used for the production of smart glass .

Optical characteristics

Skipping light:

Transparent (ON):> 80%
Not transparent (OFF):> 50%
Haze: < 5 % (ON) , >90% (OFF)
Turbidity:Transparent (ON): <3-5%
Not transparent (OFF):> 88%
Blocking of UV-waves:> 99%
Viewing Angle:> 150 °
Operating temperature: -40 ~ 70C

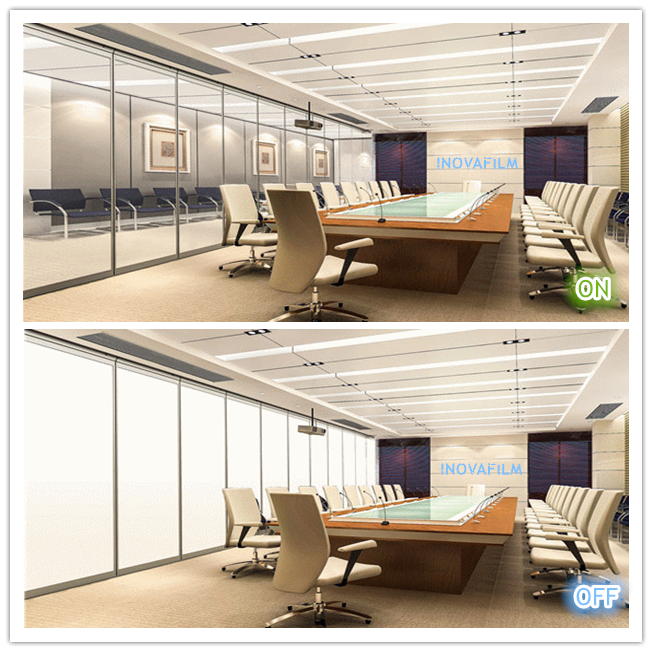

How Switchable film works


Applications:
Residential buildings, such as bathrooms, room partitions/windows, windows in balcony, cinema curtain, etc.
Office buildings, such as room partitions/windows, windows in balcony, project curtain in meeting room, etc.
Hospitals, to act as partitions or curtains, or windows.
Banks, jewelry shops, museums, etc.Other buildings suitable for such a special feature.
Installation Process
Applications
