EVERYGLOW® Glow in the Dark Label Film For Asset Tag & Barcode
1. Overview

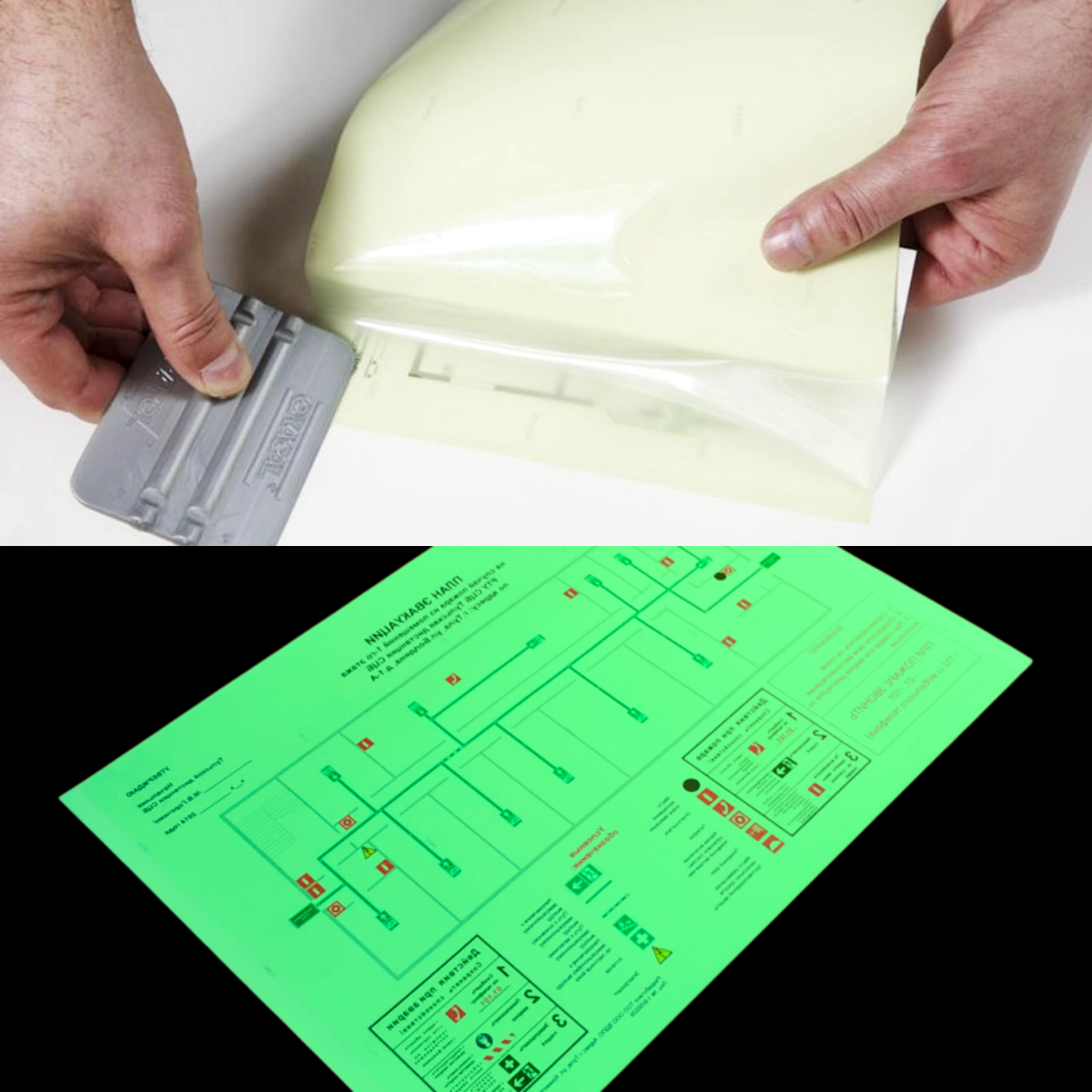

EVERYGLOW® Glow in the Dark Label Film is a professional-grade, self-adhesive photoluminescent material specifically engineered for the production of high-quality safety labels, barcode stickers, and instructional decals. Utilizing advanced strontium aluminate technology, this glow-in-the-dark label film provides an autonomous light source that ensures critical information remains legible during power failures or in low-light industrial environments.
Designed to meet the rigorous demands of the global safety market, this label film combines thin-profile flexibility with industrial-strength adhesion, making it the ideal substrate for both manual application and automated labeling systems.
2. Key Features
- Professional Self-Adhesive Performance: Features a high-performance, permanent acrylic adhesive that bonds instantly to low-surface-energy plastics, powder-coated metals, and glass.
- Superior Printability: Optimized for a wide range of printing technologies, including Thermal Transfer (TTR), Silk-screen, UV Offset, and Digital Solvent printing.
- Exceptional Afterglow: Exceeds DIN 67510 Class B, C, and D requirements, providing a high-intensity initial burst and a sustained visible glow for 8–12+ hours.
- Dimensionally Stable: Low-shrinkage construction ensures that labels maintain their shape and edge integrity over long-term service life.
- Durable & Resistant: Resistant to water, mild chemicals, and mechanical abrasion, ensuring the printed message and the glow effect remain intact.
3. Technical Specifications
| Property | Typical Value |
|---|---|
| Material Type | Multi-layer Photoluminescent PET |
| Glow Color | Yellow-Green / Aqua Blue |
| Adhesive | Permanent Pressure-Sensitive Solvent Acrylic |
| Liner | Siliconized PE-coated Kraft Paper / PET Film |
| Standard Thickness | 150 microns – 230 microns |
| Temperature Range | -40 °C to +80 °C |
| Certifications | IMO A.752(18), ISO 15370, REACH, RoHS |
4. Primary Applications
- Safety & Warning Labels: Creating “Caution,” “Danger,” and “Exit” labels for machinery and electrical panels.
- Asset Management: Luminous barcodes and QR code labels for tracking equipment in dark warehouses or storage holds.
- Instructional Decals: Operating instructions for fire extinguishers, emergency valves, and medical kits.
- Consumer Electronics: Decorative and functional branding for remote controls, switches, and device ports.
- Marine & Aviation: Low-level lighting labels for cabins, cockpits, and emergency equipment locations.
5. Processing & Printing Recommendations
- Printing: For thermal transfer printing, use high-quality resin ribbons to ensure maximum durability and chemical resistance.
- Cutting: The film is easily kiss-cut or die-cut. Due to the high pigment density, carbide-tipped blades are recommended for high-volume production.
- Application: The surface should be clean and dry. A minimum application temperature of $+10^\circ\text{C}$ is recommended for optimal initial tack.
6. Safety & Durability
- Non-Toxic: Free from radioactive elements and phosphorus.
- Service Life: 5–10 years for indoor applications; 3–5 years for protected outdoor use.
- Recharging: Charges indefinitely without degradation of the photoluminescent crystals.
| Products name | SG-Label | photoluminescent label film | |
| Material | synthetic polyester | Appearance | pale green |
| Thickness | 0.18-0.25mm | Glow color | Yellow-green |
| Width | 1.22m/61cm | Lifetime indoors | 10year |
| length | 25m / 50m | Lifetime outdoor | 3-7years |
| Self-adhesive | yes | Afterglow luminance mcd/m2 | 150mcd/m2 at 10mins |
| Printing | Plotter | 20mcd/m2 at 60mins | |
1) Excited by light source D65 1000Lx for 10mins;Note: Test standard: DIN67510 Part 1
2)The afterglow time indicates the time during which the pigment declines to 0.32 mcd/m2
3) The error of ± 10% is allowed in the above data.
Package:
1.22m x 25m/50m, 61cm x 25m/50m, each roll put in one carton.
Application:
These pigments are mainly applied as Safety photoluminescent wall stickers, advertising, labels, letters, wayfinding systems, etc.
FAQs
What are the primary applications of this glow-in-the-dark label film?
It is mainly used for safety and warning labels, asset management with luminous barcodes, instructional decals, branding for consumer electronics, and low-level lighting labels in marine and aviation environments.
How should I process and print with the EVERYGLOW® Glow in the Dark Label Film?
Use high-quality resin ribbons for thermal transfer printing, cut the film with carbide-tipped blades due to high pigment density, and ensure the application surface is clean and dry with a minimum temperature of +10°C for optimal adhesion.
What technical specifications should I know about this glow-in-the-dark label film?
It is made of multi-layer photoluminescent PET with a glow color of yellow-green or aqua blue, uses a permanent acrylic adhesive, and has a typical thickness of 150 to 230 microns, with a service temperature range from -40°C to +80°C.
What are the key features of EVERYGLOW® Glow in the Dark Label Film?
Its key features include professional self-adhesive performance, superior printability, exceptional afterglow exceeding DIN standards, dimensional stability, and resistance to water, chemicals, and abrasion.
What is EVERYGLOW® Glow in the Dark Label Film used for?
EVERYGLOW® Glow in the Dark Label Film is used for creating high-quality safety labels, barcode stickers, and instructional decals that remain legible in low-light or power outage situations.
