Rigid Photoluminescent Sheet (High-Intensity Substrate)
Our Rigid Photoluminescent Sheet is a professional-grade, non-electric safety substrate engineered for extreme durability and high-performance light emission. Available in both Rigid PVC and Aluminum-backed configurations, these sheets serve as the structural foundation for fail-safe emergency egress systems, fire safety signage, and maritime identification markers.
Unlike flexible films, the rigid construction provides superior impact resistance and structural integrity, making it the preferred choice for high-traffic industrial environments and extreme weather conditions.
Photoluminescent sheet Features & Performance
- Advanced Strontium Aluminate Technology: Infused with high-density crystals that provide 10x the brightness and longevity of traditional zinc-sulfide materials.
- Fail-Safe Illumination: Requires zero electricity or battery backup. Recharges indefinitely from any ambient light source (natural or artificial).
- Compliance Ready: Engineered to meet and exceed global safety standards:
- DIN 67510: Performance Class C, D, and E available.
- IMO / SOLAS: Maritime-certified for low-location lighting (LLL).
- ASTM E2072: Standard specification for photoluminescent safety markings.
- Structural Integrity: Available in fire-retardant PVC or corrosion-resistant Aluminum. Both options are impact-resistant and designed for long-term installation (15+ years indoor service life).
- Print Optimization: The surface is specially treated for high-adhesion silk-screen printing and UV-digital printing, allowing for crisp, high-contrast safety icons and text.
Rigid Photoluminescent sheet Technical Specifications
| Property | Photoluminescent Rigid PVC Sheet | Photoluminescent Aluminum Rigid Sheet |
|---|---|---|
| Base Material | Flame-Retardant PVC | Anodized/Coated Aluminum |
| Thickness | 1.0mm, 1.2mm, 1.5mm, 2.0mm | 1.3mm, 1.5mm ,2.0mm |
| Luminance (10 min) | >70 mcd/m2 | Up to 600mcd/m2 (Super Grade) |
| Afterglow Duration | 8 Hours | 12+ Hours |
| Standard Dimensions | 500 x 600mm,600 x 1000mm,1000 x 1200mm | 1200mm x 1000mm |
| Fire Rating | UL 94 V-0 or Class B1 | Non-combustible base |
| Chemical Resistance | High (Oil, Grease, Saltwater) | Excellent (Marine Grade) |
Primary Applications
1. Fire Safety & Emergency Egress

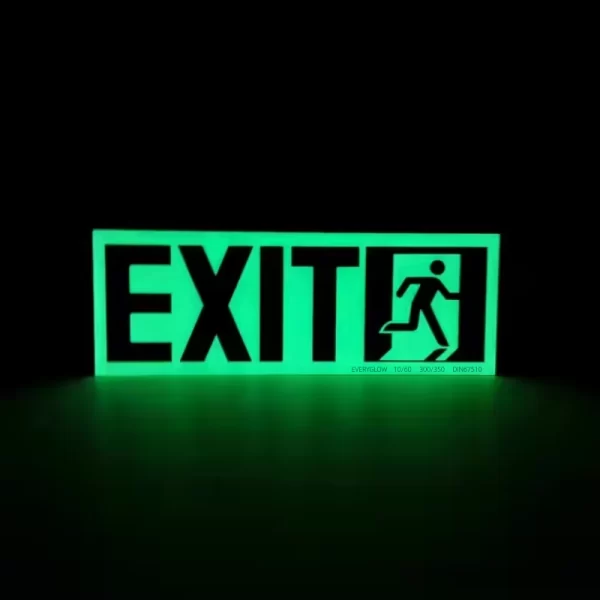

The primary substrate for manufacturing high-quality “EXIT” signs, fire extinguisher IDs, and directional arrows. The rigid nature allows for mounting on uneven surfaces or standoff brackets.
2. Maritime & Offshore (IMO/SOLAS)
Crucial for shipboard safety. These sheets are resistant to saltwater corrosion and humidity, making them ideal for marking escape hatches, corridors, and life-raft stations on commercial vessels and oil rigs.
3. Industrial Infrastructure
Used in power plants, tunnels, and warehouses to mark low-clearance beams, hazard zones, and valve locations that must remain visible during a total power failure or smoke-filled event.
4. High-End Commercial Signage
Utilized by architects for decorative but functional lighting in theaters, parking garages, and modern office buildings where aesthetics must meet safety codes.
Fabrication & Installation
- Cutting: Can be easily processed using industrial shears, CNC routers, or laser cutting (Aluminum only).
- Printing: Optimized for solvent, eco-solvent, and UV-curable inks. No specialized primers are usually required for high-quality rigid sheets.
- Mounting: Can be installed using mechanical fasteners (screws/rivets) or high-bond industrial double-sided tapes. The rigid back prevents the “telegraphing” of surface imperfections often seen with thin films.
Safety & Handling
- Eco-Friendly: Non-toxic, non-radioactive, and lead-free.
- Maintenance: Maintenance-free beyond occasional cleaning. Use a damp cloth to remove dust to ensure maximum light absorption.
- Storage: Store flat in a dry, ventilated area to prevent warping (for PVC) or surface scratching.
Photoluminescent pvc rigid sheet is choose Everyglow LBG series photoluminescent pigment combine with Acrylic resin and PVC base rigid sheet, it available glow 6-10hours after absorb the visible light for 5-30mins,
and this emit & absorb light process is repeatedly,no power request.
Products Properties:
Free of radioactive elements , non-toxic, harmless, Eco-friendly material.
Longer afterglow time and super higher luminance.
Excellent printing by eco-solvent ink,uv ink, silk-screen ink.
Good weather resistant for outdoor use.
| Products name | Class B | photoluminescent boards | |
| Material | PVC | Appearance | Yellowish |
| Thickness | 1.0-1.3mm | Glow color | Yellow-green |
| Width | 1.2m max | Life time in door | 10year |
| length | 1.0m | Life time outdoor | 3-7years |
| Self-adhesive | yes | Afterglow luminance mcd/m2 | > 50mcd/m2 at 10mins |
| Printing ink | uv ink,silk-screen ink | >7mcd/m2 at 60mins | |
1) Excited by light source D65 1000Lx for 10mins;Note: Test standard: DIN67510 Part 1
2)The afterglow time indicates the time during which the pigment decline to 0.32 mcd/m2
3) The error about ± 10% is allowed in above data.
Package:
1.0m x 1.2m, 60cm x 50cm ,60cm x 100cm.
Application:
Photoluminescent PVC Rigid sheet is mainly apply as Safety photoluminescent sign, advertising,label,evacuation plan, wayfinding system etc.
